- Perfect for memory cards such as SD cards, CF cards, and SIM cards.
- With the labeling delay function, able to adjust the labeling position according to your product needs.
- Customized card slot, it can store a number of memory cards for an efficient production process.
- Customized modules to prevent bubble or drift labels.
- Customized conveying track to label the top and bottom of cards at once, the process is fluent and efficient.
- Use modules to flat labels after dispensing, to prevent wrinkling and bubbling.
- The double-sided labeler can also run in single label mode, to choose single or double-sided labeling mode according to production needs.
- The height and angle of the label position are adjustable based on your needs.
- High-precision sensor, exact position detection, enables accurate labeling.
- Suitable for high-end electronic products in the electronics and technology industry that require precision with products.
- Dual label applicators in one machine apply two different labels with one process.
- No need to turn memory cards over manually, saving massive production time and labor cost.
- Suitable for light and delicate small products such as electronic parts and memory cards, which are easy to drift when conveying but require high accuracy.
- Driven by a highly efficient step motor, which makes the movements smooth and quiet.
- Each labeling applicator has independent adjustment modules to adjust angles or positions for the best labeling result.
- Equipped with an emergency stop button, allows you to take over the control in any abnormal situation during production.
- High maneuverability, with wheels and height-adjustable fixed base, allows you to move all over easily and fix in position in a second.
- LED touch screen control by microcomputer, it is easy to operate and to get production progress and setting data.
- The machine is built with 304 stainless steel and high-grade aluminum alloy, making our machine not just strong and stable, but also with esthetic.
- Options to add an automatic memory card feeder to provide efficient and stable production capacity.
Features
Specifications
- Labeling Speed: 40-60 pcs/min (depends on the size of the product and the label)
- Label Width: 10-50mm
- Label Length: 10-1000mm
- Label Reel: (ID) 75mm (OD)300mm
- Machine Dimension: (L)2000 mm (W)750mm (H)1400mm
- Machine Weight: 200kg
- Power Supply: Single phase, 110 or 220 VAC, 50/60Hz
Option Accessories
- Automatic memory card feeder
- Clear label sensor
- Laser label printer
Description
Description
The double-sided labeler is widely used in various products with a flat surface. From boxes to flat products: salad boxes, paper boxes, plastic boxes, paper, aluminum foil bags, and packaging boxes for most products.

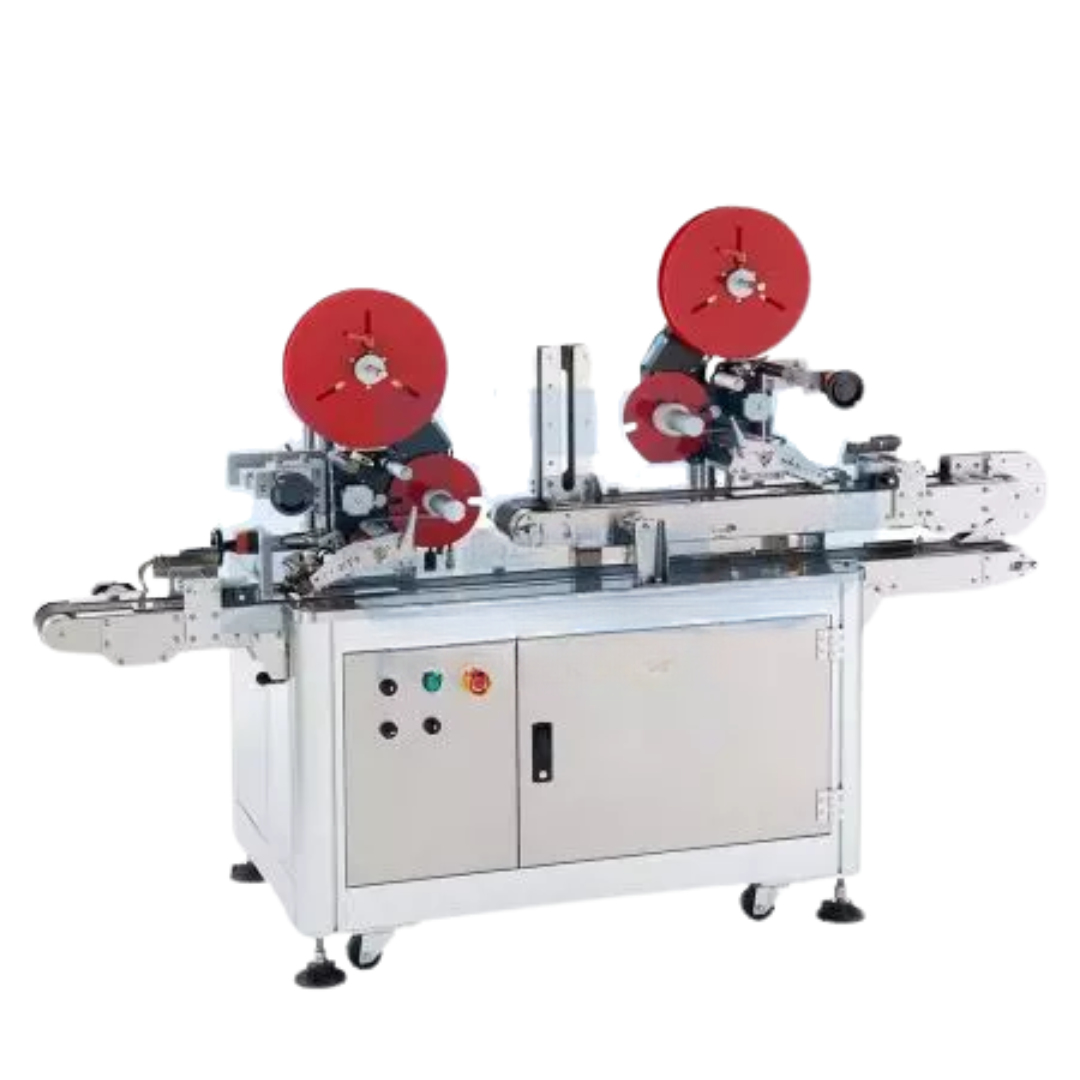

This automatic double-sided memory cards labeler is specially designed for SD cards, CF cards, SIM cards, and other flat products which is small and require high precision. A double-sided label applicator can do one or two separate labels on the top and bottom of each product while conveying.
High Accuracy And Efficiency Double-Side Label Applicator
Usually, memory card labeling requires higher accuracy, and it is more difficult compared to regular products. The main reason is that memory cards are usually small and light, they may shift around when conveying, which will limit the conveyor speed. Also, the labels used on memory cards are usually thinner than regular labels, which makes it easier to have wrinkled or bubbled labels. Furthermore, the labeling area is limited and small, and will need a labeling machine with custom modules to reach high accuracy and quality. This double-sided memory card labeler with superior performance can label the top and bottom of the product with high accuracy and efficiency, setting a new standard for labeling machines.
Duo Labeling Dispenser In One Machine, Double-Sided Memory Card Labeler. Label Both Sides In One Process, No Manual Flipping Required
Our double-sided labeling machine can be customized according to your needs. To be able to get higher accuracy, you will only need to adjust the guiderail to fix the position of the product, so it will not shift when conveying. This labeler has a customized track to transport and flip memory cards to the bottom side labeling after the top side is done. It helps you to reduce labor costs and improve efficiency.
To accommodate capacity needs, you can adjust the speed that best suits you. If you are looking for a labeler that is double-sided, high-precision, and applicable for memory cards, top and bottom labeling needs. This stable, automatic, smoothly running labeler will be your best solution when you need to do double-sided, top and bottom, with high accuracy labeling. It also helps in raising productivity and reducing labor costs.
