- Widely used in various industries: Bottles from everyday life are applicable, such as Vitamin B, poster paint, hand soap, wine, and olive oil.
- The bottle labeling machine could ship with a bottle gating system to match the labeling speed
- Components of the labeler parts are customizable and have great precision
- The tabletop round bottle labeler is convenient and highly mobile. It’s small-sized and space-saving.
- Food-grade conveyor belt is wear-resistant with a long service life. It delivers bottles steadily and quickly.
- Engineering plastics, there are more than 80% recyclable material: The machine is made of engineering plastics, is impact resistant and high-temperature resistant, in addition to good thermal and mechanical performance. Most material is recyclable, in turn achieving sustainable development.
- Made of SUS#304 stainless steel and aluminum alloy, and has passed the GMP certification standard
- The LR110A can combine with our filler or capper as a production line: The automatic warning function will be switched on in case of missing or damaged labels.
Features
Specifications
- Labeling Speed: 20–50 btls/min (depending on the size of the bottle and label)
- Bottle Size: Diameter 16 mm–100 mm, Height 30–160 mm
- Label Size: Width 10–100 mm, Length 10–300 mm
- Label Reel: Inner Diameter 75 mm, Outer Diameter 300 mm
- Power Supply: 110 or 220 VAC, 50/60 Hz
- Machine Size: (L) 950 mm × (W) 890 mm × (H) 450 mm
Option Accessories
- Bottle infeed turntable
- Bottle gating system
- Date coder
- Transparent label sensor
- Particular roll labeling set: suitable for 3/4 to 1 circle labeling
Description
Description

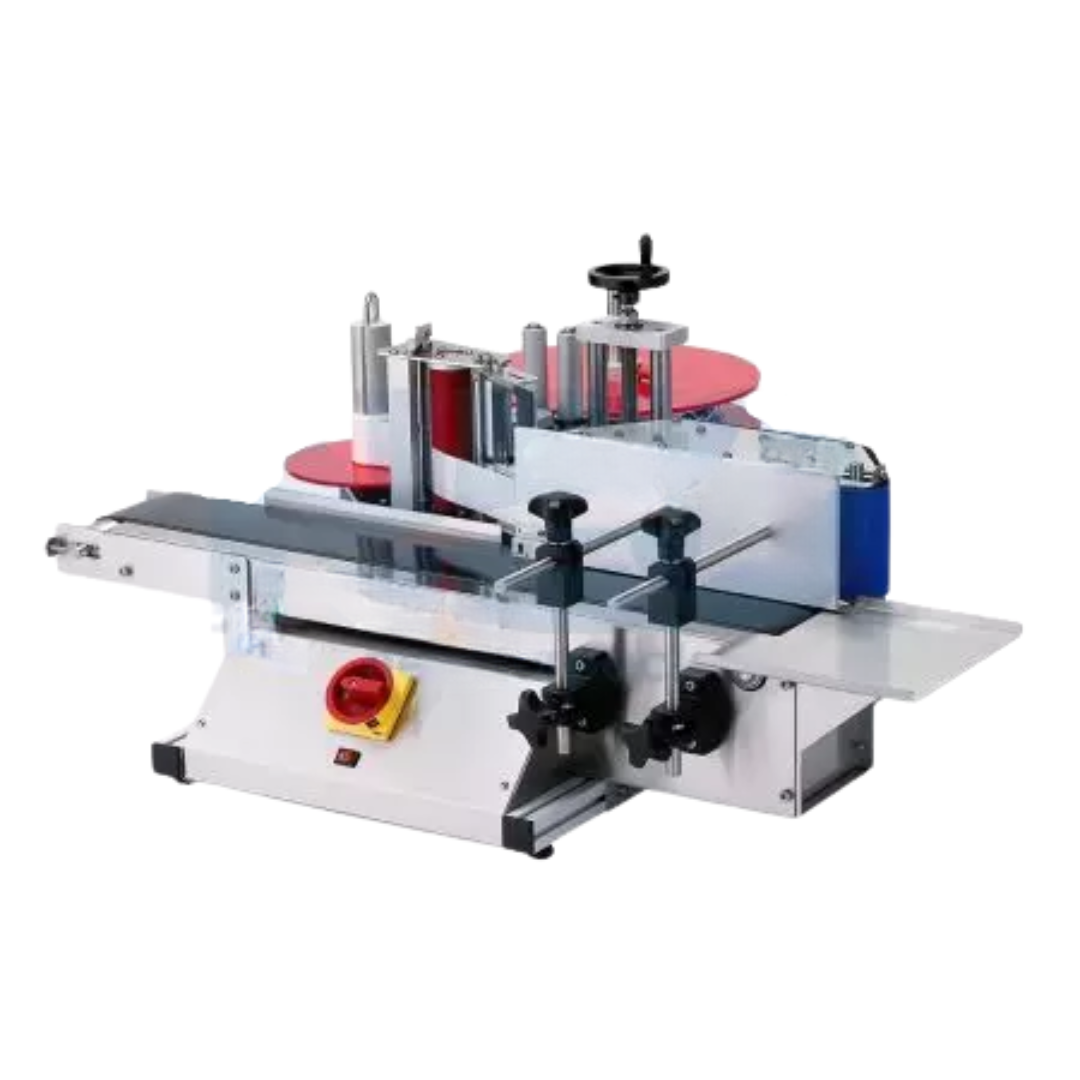

Our tabletop round bottle labeler can do all kinds of round bottle labeling jobs done with compact in size, easy in mobility. Various labels like self-adhesive labels, multilayered labels, fragile labels, coated paper stickers, waterproof beer labels, anti-counterfeiting labels, or Kraft paper stickers can be easily applied by LR110A. The final product is fine, beautiful, and tasteful.
This labeler is designed for multiple types of round bottles with either full wrap-around or 1/2 labels, regardless of the material of the bottle. There is no need to set up change labeling parameters and adjust the speed repeatedly during production. One person can operate the machine. Even if it only takes one person to operate the labeler, human errors can still be greatly reduced. The labeling speed can easily reach around 20 to 50 bottles per minute, making it your first choice to meet all the round bottle labeling needs.
Easy to operate, reduces human error
Our semi-automatic bottle labeling machine LR110A is an intelligent labeling machine, which is equipped with an electronic control panel for easy operation. There is no need to change the setup frequently during production, which can greatly reduce human errors and labor costs, and increase production speed and efficiency.
Provide customers with a high-quality round bottle labeler and multiply production capacity

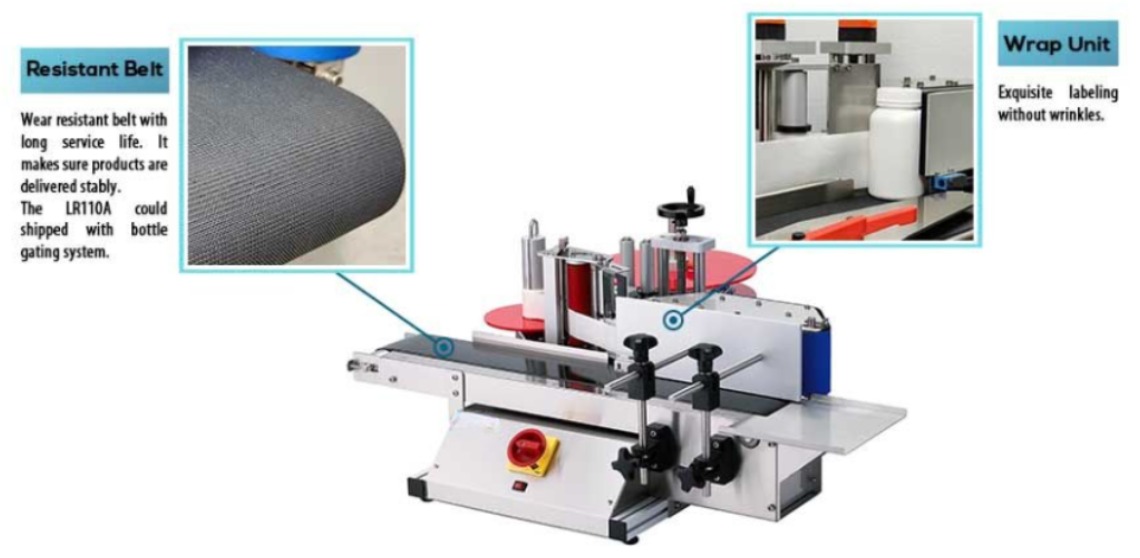

The tabletop labeling machine can also be combined with other packing machines, such as cappers, fillers, and date coders, as a high-performance production system. It also comes with a labeling smoothing wrap belt module and a durable conveyor belt. The labeling result is exquisite, firm, and not easy to detach. Effectively multiplies the production capacity for customers, thereby improving their international competitiveness.
Quick3PL has been dedicated to professional research and development for many years. Furthermore, we pursue creating high-quality and durable bottle labeler machines at all costs, providing customers with outstanding products and solutions. The LR110A is suitable for the manufacturing environment of various industries. Our product is your best choice! We provide specific installation instructions.
Application & Advantage
Suitable goods
Nutritional supplement, throat lozenge, pickled cucumber, wheat gluten with peanut, diffuser, round tube, pepper mill, oil dispenser, cleansing oil, sweet chili sauce, conditioner, large round bucket, ampoule, poster paint, alcohol spray, mosquito repellent, etc.
Suitable container shape
Upright round bottle, cylindrical, hexagonal, small bottle, beer bottle, plastic bottle, glass bottle or octagonal bottle, and products that need a label with a single sticker and 1/2 or full circle label.
Suitable container material
Glass, paper products, cans, tinplate, Styrofoam, tea caddy, metal, and various plastic bottles are suitable.
Suitable labels
Kraft paper sticker, self-adhesive label, multilayer label, barcode sticker, laser security label, appliance label, fragile label, transparent label, coated paper sticker, pearly label, wine label, nameplate sticker, security label.
Labeling style

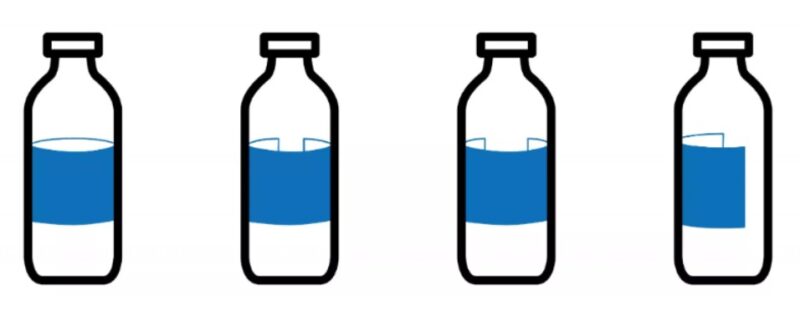

The label sensor detects the bottle. While labeling, rotate the bottle by 1, 3/4, 2/3, or 1/2 circle.
Suitable industries
Pharmaceutical industry, cosmetic industry, food industry, biotechnology industry, manufacturing industry, daily necessities chemical industry, high-precision product technology industry, etc.
Features
- Widely used in various industries: Bottles from everyday life are applicable, such as Vitamin B, poster paint, hand soap, wine, and olive oil.
- The bottle labeling machine could ship with a bottle gating system to match the labeling speed
- Components of the labeler parts are customizable and have great precision
- The tabletop round bottle labeler is convenient and highly mobile. It’s small-sized and space-saving.
- Food-grade conveyor belt is wear-resistant with a long service life. It delivers bottles steadily and quickly.
- Engineering plastics, there are more than 80% recyclable material: The machine is made of engineering plastics, is impact resistant and high-temperature resistant, in addition to good thermal and mechanical performance. Most material is recyclable, in turn achieving sustainable development.
- Made of SUS#304 stainless steel and aluminum alloy, and has passed the GMP certification standard
- The LR110A can combine with our filler or capper as a production line: The automatic warning function will be switched on in case of missing or damaged labels.
Specifications
- Labeling Speed: 20–50 btls/min (depending on the size of the bottle and label)
- Bottle Size: Diameter 16 mm–100 mm, Height 30–160 mm
- Label Size: Width 10–100 mm, Length 10–300 mm
- Label Reel: Inner Diameter 75 mm, Outer Diameter 300 mm
- Power Supply: 110 or 220 VAC, 50/60 Hz
- Machine Size: (L) 950 mm × (W) 890 mm × (H) 450 mm
Option Accessories
- Bottle infeed turntable
- Bottle gating system
- Date coder
- Transparent label sensor
- Particular roll labeling set: suitable for 3/4 to 1 circle labeling
