- Labeling accuracy within +/-1mm.
- Automatic bottle feeding and collecting produce efficiently.
- Photo eye sensors for smart label, no bottle, no labeling.
- Heavy-duty construction prolongs the longevity.
- Ideal for all plastic, metal, and glass round bottles, especially for wrap-around products.
- Widely adaptable to any type of industry.
- Stepper motor drive, label dispensing up to 13 meters/min.
- The spindle roller module makes it easy to wrap around the bottle.
- Colorful touch PLC + HMI.
- Alternative operation mode: test/manual/auto.
- Memory set, easy to change over.
- The front panel start and emergency stop.
- Simple adjusting of hand wheels for quick setup.
- Variable speed conveyor, labeling is flexible.
- Rotary table speed controller, feeding and collecting smoothly.
- Stainless steel and anodized aluminum construction, easy to maintain.
- Casters are equipped, increasing the mobility.
- Parameter setting protection, which makes the production management easy and convenient.
- The touch screen operation interface makes the parameter adjustment simple and quick to operate.
- Labeling with high stability and precise position.

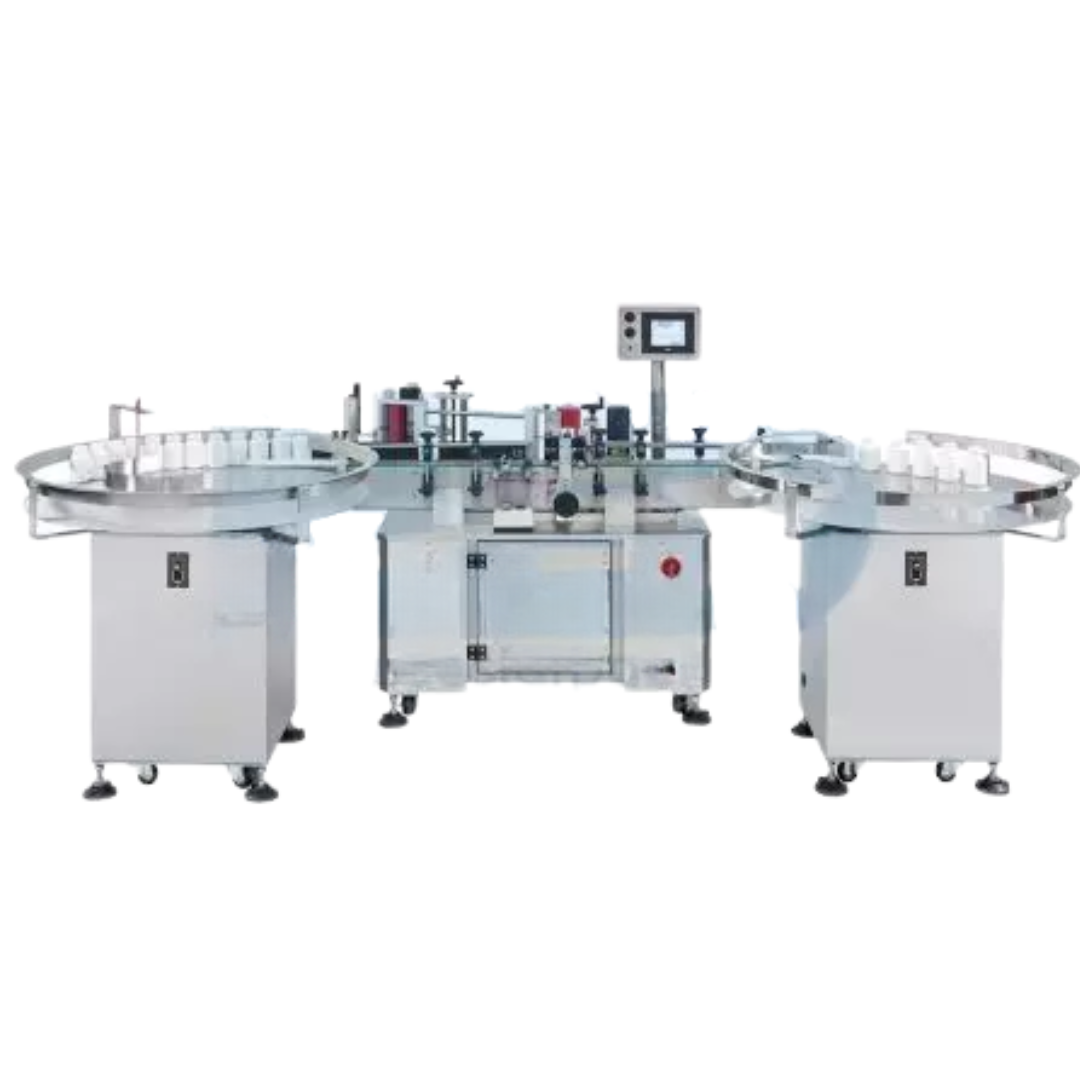

Automatic Round Bottle Labeler with Rotary Table
Availability: In Stock
SKU: LR4300 / RT1080 / RT2080
Features
Specifications
Labeller
- Dispensing Speed: max. 13m/min
- Label Size: max. (H) 110mm (L) 150mm
- Label Roll Size: Inner Dia. 75mm; Outer Dia. 300mm
- Power Supply: 110/220 VAC, 50/60 HZ, 1 PHASE
- Air Requirement: 90 PSI / 3 CFM
- Dimension: (L) 850mm x (W) 600mm x (H) 500mm
Rotary Table
- Table Diameter: 600 / 800 / 900 / 1000 / 1200mm
- Power Supply: 110/220 VAC, 50/60 HZ, 1 PHASE
- Dimension: (H) 500mm
Description
Description
This is the most convenient labeling machine with high stability and precise positioning. It has an automatic bottle feeding and collecting round table to produce efficiently and save labor. Construction is heavy-duty, prolonging the longevity. It’s ideal for all plastic, metal, and glass round bottles, especially for wrap-around products.
The applicable product: Required to be labeled on the Circumference of the surface or other Curved surface. Applicable industries are Food and beverage, pharmaceutical, cosmetics, chemical, electronic, metal, plastic, and other industries. We can also supply you with the coding machine as an option to print production date and batch number, shorten the bottle packaging process, and improve production efficiency.
